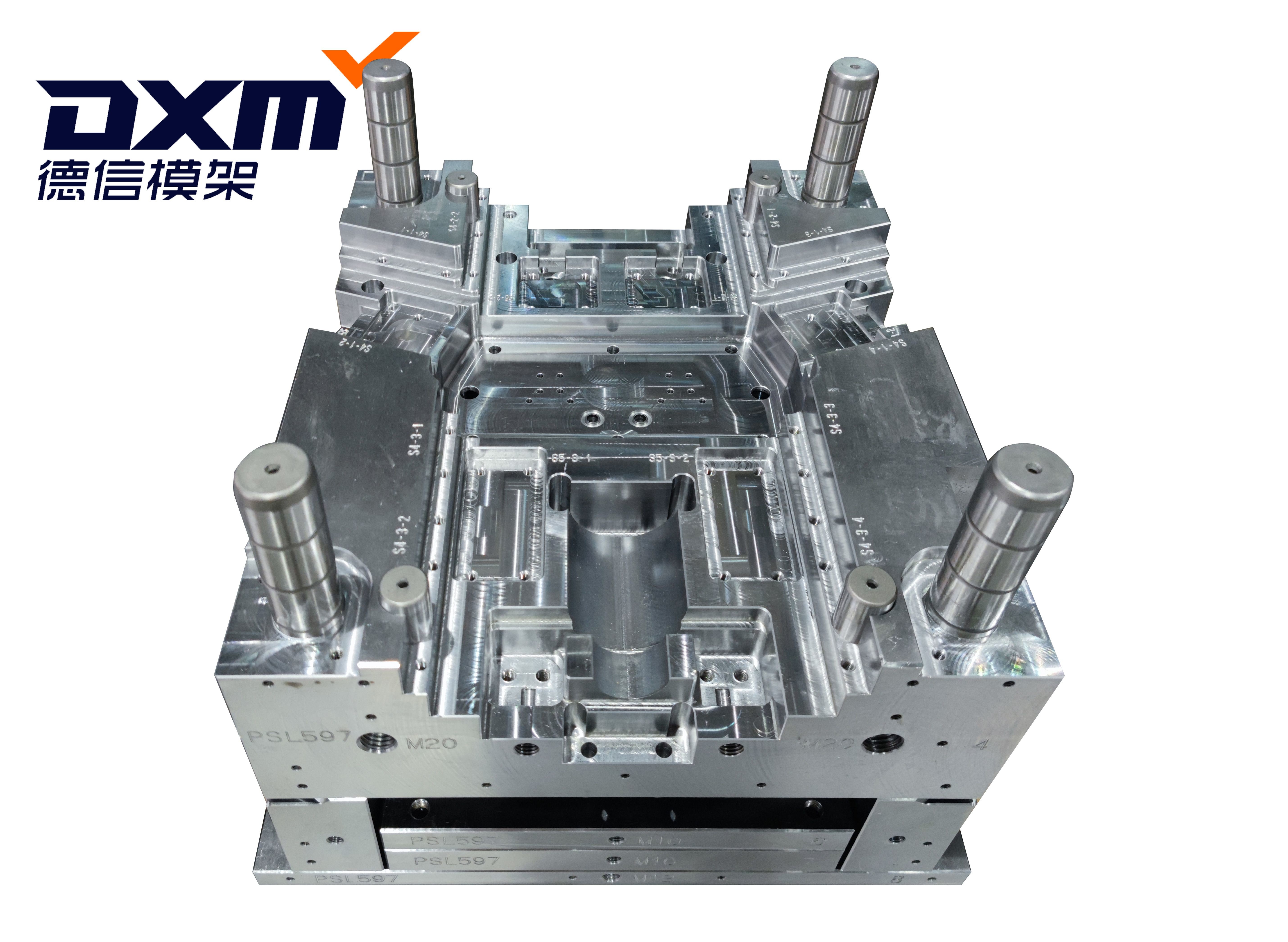

ODM DIN 1.2344 Custom Mold Bases Customized Precision Mold Base

1
MOQ
Quotation according to the drawings and processing requirements you provided
Price
ODM DIN 1.2344 Custom Mold Bases Customized Precision Mold Base
Features Gallery Product Description Request A Quote
Features
Specifications
Processing: CNC Machining(Mazak/ Okuma/ Mori Seiki/ Makino, Etc)
Size: 15*15cm*80*130cm
Service: Free Drawing Review. Accurately Inform You Of The Delivery Time. Fine Quotation, Listing All Processing Items And Detailed Costs. 24-hour On-duty Professional After-sales Service Team.
Application: Daily Necessities, Toys, Cosmetics, Electrical Appliances, Medical Equipment, Etc.
Delivery: Normal Production Time 5-13 Days
Standards: 8 Advantages For Our Products, Such As Honing True Round Guide Sleeve, Customized 50c Material(hardness HB160-180), CNC Extrusion Teeth Process, CNC Sinking. Read Description For More Details.
Material: 50c, ASTM: 1050, JIS: S50c, DIN: CK53, ASTM: P20, ASTM: P20+Ni(DIN: 1.2738), ASTM: 420(DIN: 1.2083), ASSAB: S136, ASTM: P21(Japan: NAK80), ASTM: H13(DIN: 1.2344, JIS: SKD61, ASSAB: 8407)
Customized Process: All CNC Process Can Be Done According To Your Requirements.
High Light:

ODM Custom Mold Bases

,

DIN 1.2344 Custom Mold Bases

,

Customized Precision Mold Base

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: DXM
Certification: ISO9001:2015
Model Number: Customized Simplified type fine water mouth system mould base
Payment & Shipping Terms
Packaging Details: All exported products are packaged in fumigation-free wooden boxes and transported to designated ports by sea transportation using containers.
Delivery Time: Non-standard customized mould base: Range 15*15cm-80*130cm; normal production time 5-12 days
Payment Terms: We provide a very diverse range of payment methods. Please explain your needs to our sales staff. Can DXM provide VAT invoices? All orders can be invoiced with VAT special invoices.
Supply Ability: 290000 Sets/Year
Product Description

24-Hour Professional After-Sales Service Non-Standard Customized Mould Bases 15*15cm-80*130cm Tax-Inclusive Prices Deliv

Product Description:

Custom Mold Bases is a professional molding base supplier that specializes in customized mold bases. Our mold bases are customized according to the customer's size and shape requirements, ranging from 15*15cm*80*130cm. We provide free drawing review and accurate delivery time information, in addition to a fine quotation that includes all processing items and detailed costs. Moreover, we have a 24-hour on-duty professional after-sales service team to solve problems at the first time and then implement responsibilities without wasting time on determining responsibilities. Our product quotation is tax-inclusive and it does not include freight. The freight will be calculated separately before the order is confirmed. We also provide an after-sales survey to understand the usage.

In addition to standard mould base, we offer a variety of additional processing projects for mould base products, such as AB plate and push plate change steel type, rough (fine) frame processing, precision frame chamfering, round frame, back needle through push plate, limit pin, guide post inversion, standard needle. Plate edge (EGP), standard code mould pit, fine work surface code mould pit, top stick hole, side lock (SIDELOCK), top lock (TOPLOCK), oblique guide position assistant (TAPERBLOCK), suction nozzle. hole, code die iron (locking module). If the above processing projects cannot meet your needs, please contact us directly.



Features:

  • Customized Molding Bases:In addition to standard mould base, can other processing projects be done for mold frame products? The following additional processing projects can be done for mould base products: AB Plate and Push Plate Change Steel Type, Rough (fine) Frame Processing, Precision Frame Chamfering, Round Frame, Back Needle Through Push Plate, Limit Pin, Guide Post Inversion, Standard Needle. Plate Edge (EGP), Standard Code Mould Pit, Fine Work Surface Code Mould Pit, Top Stick Hole, Side Lock (SIDELOCK), Top Lock (TOPLOCK), Oblique Guide Position Assistant (TAPERBLOCK), Suction Nozzle. Hole, Code Die Iron (locking Module).
  • Standards:Honing true round guide sleeve can effectively increase the number of opening and closing moulds by 20%, prevent guide post from being pulled and improve the service life of the mould. Customized 50c material, hardness HB = 160-180. Higher hardness, lower deformation rate, better finish and better rust resistance than ordinary steel (hardness 140-170). The whole set of screw teeth use CNC extrusion teeth process, smooth screw teeth, easy to disassemble and assemble. The screw head is processed by CNC sinking, the bottom of the hole is flat, and the locking performance is better. The square iron screw hole is processed by CNC, with good verticality. The plate thickness tolerance is + 0-0.1 mm. Prepare pre-customizable accessories to shorten the mould production time. Imported equipment: MAZAK, OKUMA, MORI SEIKI, MAKINO, with accurate repeated positioning and precision hole and frame tolerance of 0.01 mm and good finish. Using high-end imported cutting tools (Swiss Sandvik and Japanese BIG) to improve the straightness and precision of holes and frames and the accuracy and finish of the entire processing of the mould base.
  • Service:Free drawing review. Accurately inform you of the delivery time. Fine quotation, listing all processing items and detailed costs. 24-hour on-duty professional after-sales service team. Solve problems at the first time and then implement responsibilities without wasting time on determining responsibilities. After-sales survey to understand usage.
  • Size:15*15cm*80*130cm


Technical Parameters:

Features Details
Delivery Non-standard Customized Mould Base: Range 15*15cm-80*130cm; Normal Production Time 5-12 Days
Packaging Fumigation-free Wooden Box
Logo Customized
Standards 1. Honing True Round Guide Sleeve Can Effectively Increase The Number Of Opening And Closing Moulds By 20%, Prevent Guide Post From Being Pulled And Improve The Service Life Of The Mould. 2. Customized 50c Material, Hardness HB=160-180. Higher Hardness, Lower Deformation Rate, Better Finish And Better Rust Resistance Than Ordinary Steel(hardness 140-170). 3. The Whole Set Of Screw Teeth Use CNC Extrusion Teeth Process, Smooth Screw Teeth, Easy To Disassemble And Assemble. 4. The Screw Head Is Processed By CNC Sinking, The Bottom Of The Hole Is Flat, And The Locking Performance Is Better. 5. The Square Iron Screw Hole Is Processed By CNC, With Good Verticality. 6. The Plate Thickness Tolerance Is +0-0.1mm. Prepare Pre-customizable Accessories To Shorten The Mould Production Time. 7. Imported Equipment: MAZAK, OKUMA, MORI SEIKI, MAKINO, With Accurate Repeated Positioning And Precision Hole And Frame Tolerance Of 0.01mm And Good Finish. 8. Using High-end Imported Cutting Tools (Swiss Sandvik And Japanese BIG) To Improve The Straightness And Precision Of Holes And Frames And The Accuracy And Finish Of The Entire Processing Of The Mould Base.
Surface Treatment Precision Milling, Precision Grinding
Color Steel
Service Free Drawing Review. Accurately Inform You Of The Delivery Time. Fine Quotation, Listing All Processing Items And Detailed Costs. 24-hour On-duty Professional After-sales Service Team. Solve Problems At The First Time And Then Implement Responsibilities Without Wasting Time On Determining Responsibilities. After-sales Survey To Understand Usage.
Shape Customized
Product Selection 1. In Addition To Standard Mould Base, Can Other Processing Projects Be Done For Mold Frame Products? ● The Following Additional Processing Projects Can Be Done For Mould Base Products: AB Plate And Push Plate Change Steel Type, Rough (fine) Frame Processing, Precision Frame Chamfering, Round Frame, Back Needle Through Push Plate, Limit Pin, Guide Post Inversion, Standard Needle. Plate Edge (EGP), Standard Code Mould Pit, Fine Work Surface Code Mould Pit, Top Stick Hole, Side Lock (SIDELOCK), Top Lock (TOPLOCK), Oblique Guide Position Assistant (TAPERBLOCK), Suction Nozzle. Hole, Code Die Iron (locking Module). ● If The Above Processing Projects Cannot Meet Your Needs, Please Contact Us Directly.
Material 50c, ASTM: 1050, JIS: S50c, DIN: CK53, ASTM: P20, ASTM: P20+Ni(DIN: 1.2738), ASTM: 420(DIN: 1.2083), ASSAB: S136, ASTM: P21(Japan: NAK80), ASTM: H13(DIN: 1.2344, JIS: SKD61, ASSAB: 8407)


Applications:

Custom Mold Bases from DXM are the perfect solution for all your custom molding needs. Our customized molding bases are designed to meet your specific applications and requirements. Our mold bases are made with the highest quality materials and have a brand name of DXM and model number of Customized Simplified Type Fine Water Mouth System Mould Base. All our products are certified with ISO9001:2015 and have a minimum order quantity of one. Prices are quoted according to the drawings and processing requirements you provide. All our exports are packaged in fumigation-free wooden boxes and shipped to designated ports by sea transportation using containers. Our delivery time for non-standard customized mould bases is 5-12 days, and the range we offer is from 15*15cm-80*130cm. We offer a variety of payment methods and can provide VAT invoices. Our supply ability is 290000 sets/year. Our surface treatments include precision milling and precision grinding, and we offer customized logos. Our service includes free drawing review, accurately informing you of delivery time, fine quotation, listing all processing items and detailed costs, 24-hour on-duty professional after-sales service team, solving problems at the first time and then implementing responsibilities without wasting time on determining responsibilities, and after-sales survey to understand usage.



Customization:

Custom Mold Bases

Brand Name: DXM

Model Number: Customized Simplified type fine water mouth system mould base

Place of Origin: Guangdong, China

Certification: ISO9001:2015

Minimum Order Quantity: 1

Price: Quotation according to the drawings and processing requirements you provided

Packaging Details: All exported products are packaged in fumigation-free wooden boxes and transported to designated ports by sea transportation using containers.

Delivery Time: Non-standard customized mould base: Range 15*15cm-80*130cm; normal production time 5-12 days

Payment Terms: We provide a very diverse range of payment methods. Please explain your needs to our sales staff. Can DXM provide VAT invoices? All orders can be invoiced with VAT special invoices.

Supply Ability: 290000 Sets/Year

Size: 15*15cm*80*130cm

Service: Free Drawing Review. Accurately Inform You Of The Delivery Time. Fine Quotation, Listing All Processing Items And Detailed Costs. 24-hour On-duty Professional After-sales Service Team. Solve Problems At The First Time And Then Implement Responsibilities Without Wasting Time On Determining Responsibilities. After-sales Survey To Understand Usage.

Standards: 1. Honing True Round Guide Sleeve Can Effectively Increase The Number Of Opening And Closing Moulds By 20%, Prevent Guide Post From Being Pulled And Improve The Service Life Of The Mould. 2. Customized 50c Material, Hardness HB=160-180. Higher Hardness, Lower Deformation Rate, Better Finish And Better Rust Resistance Than Ordinary Steel(hardness 140-170). 3. The Whole Set Of Screw Teeth Use CNC Extrusion Teeth Process, Smooth Screw Teeth, Easy To Disassemble And Assemble. 4. The Screw Head Is Processed By CNC Sinking, The Bottom Of The Hole Is Flat, And The Locking Performance Is Better. 5. The Square Iron Screw Hole Is Processed By CNC, With Good Verticality. 6. The Plate Thickness Tolerance Is +0-0.1mm. Prepare Pre-customizable Accessories To Shorten The Mould Production Time. 7. Imported Equipment: MAZAK, OKUMA, MORI SEIKI, MAKINO, With Accurate Repeated Positioning And Precision Hole And Frame Tolerance Of 0.01mm And Good Finish. 8. Using High-end Imported Cutting Tools (Swiss Sandvik And Japanese BIG) To Improve The Straightness And Precision Of Holes And Frames And The Accuracy And Finish Of The Entire Processing Of The Mould Base.

Delivery: Non-standard Customized Mould Base: Range 15*15cm-80*130cm; Normal Production Time 5-12 Days

Material: 50c, ASTM: 1050, JIS: S50c, DIN: CK53, ASTM: P20, ASTM: P20+Ni(DIN: 1.2738), ASTM: 420(DIN: 1.2083), ASSAB: S136, ASTM: P21(Japan: NAK80), ASTM: H13(DIN: 1.2344, JIS: SKD61, ASSAB: 8407)



Support and Services:

Custom Mold Bases Technical Support & Services

We offer custom mold bases technical support and services to ensure our customers have the best experience possible when using our products. Our services include:

  • Design Assistance: Our experienced design team can provide guidance and support to ensure your custom mold base is designed to meet your specific needs.
  • Fabrication: We have the capability to fabricate custom mold bases to exact specifications.
  • Installation: We can provide on-site installation of your custom mold base to ensure it is properly installed and functions correctly.
  • Maintenance: We provide ongoing maintenance and support for all of our custom mold bases.
  • Repair: We can repair any damage to your custom mold base quickly and efficiently.

For more information about our custom mold bases technical support and services, please contact us.



Packing and Shipping:

Packaging and Shipping

Custom Mold Bases are carefully packaged with foam-in-place to ensure safe shipping. Bases are shipped in customized crates, cardboard boxes, or poly bags depending on the size and weight of the product.



FAQ:

Questions about Custom Mold Bases

Q1: What is the brand name of Custom Mold Bases?

A1: The brand name of Custom Mold Bases is DXM.

Q2: What is the model number of Custom Mold Bases?

A2: The model number of Custom Mold Bases is Customized Simplified type fine water mouth system mould base.

Q3: Where is Custom Mold Bases produced?

A3: Custom Mold Bases is produced in Guangdong, China.

Q4: What is the certification of Custom Mold Bases?

A4: The certification of Custom Mold Bases is ISO9001:2015.

Q5: What is the minimum order quantity of Custom Mold Bases?

A5: The minimum order quantity of Custom Mold Bases is 1.
