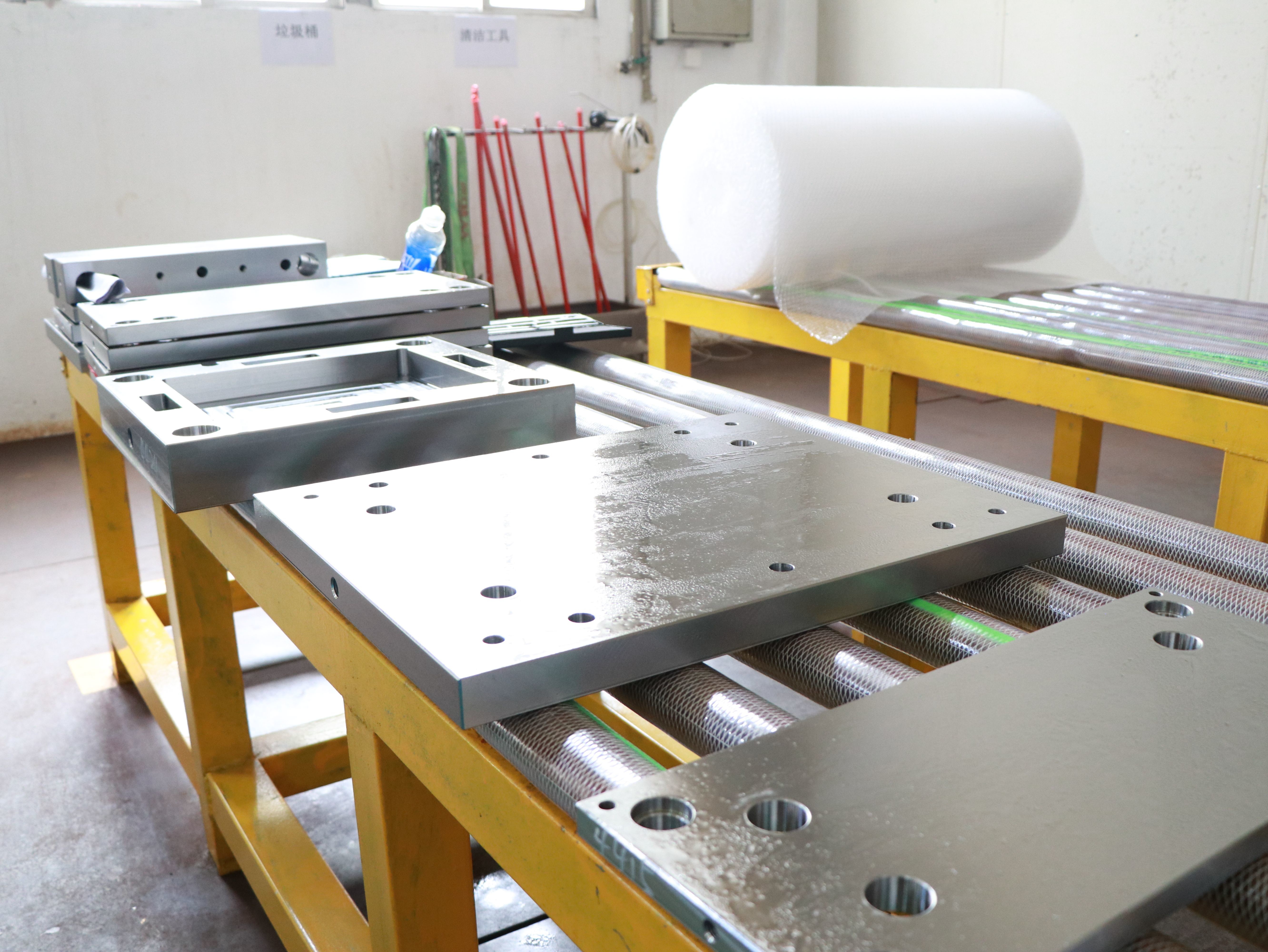

CNC Sinking Screw Head Precision Dme Mold Base Easy Disassembly Assembly

Product Description:

Standard Mould Base is a product made of 50c material, with ASTM standard 1050, JIS standard S50c and DIN standard CK53. It can be delivered in two forms, Standard Mould Base and Standard Modified Mould Base. The size range of Standard Mould Base is 15*15cm-35*45cm, and the normal production time is 1 day. The size range of Standard Modified Mould Base is 15*20cm-40*50cm, and the normal production time is 1-2 days. Surface Treatment of Standard Mould Base includes Precision Milling and Precision Grinding. In addition to Standard Mould Base, other processing projects can also be done for mold frame products, such as AB Plate and Push Plate Change Steel Type, Rough (fine) Frame Processing, Precision Frame Chamfering, Round Frame, Back Needle Through Push Plate, Limit Pin, Guide Post Inversion, Standard Needle. Plate Edge (EGP), Standard Code Mould Pit, Fine Work Surface Code Mould Pit, Top Stick Hole, Side Lock (SIDELOCK), Top Lock (TOPLOCK), Oblique Guide Position Assistant (TAPERBLOCK), Suction Nozzle. Hole, Code Die Iron (locking Module).

The product meets the standards of Honing True Round Guide Sleeve, which can effectively increase the number of opening and closing moulds by 20%, prevent guide post from being pulled and improve the service life of the mould. The customized 50c material has a hardness HB of 160-180, which is higher than the ordinary steel (hardness 140-170). The whole set of screw teeth use CNC extrusion teeth process, smooth screw teeth, easy to disassemble and assemble. The screw head is processed by CNC sinking, the bottom of the hole is flat, and the locking performance is better. The square iron screw hole is processed by CNC, with good verticality. The plate thickness tolerance is +0-0.1mm. Imported equipment such as MAZAK, OKUMA, MORI SEIKI, MAKINO are used, with accurate repeated positioning and precision hole and frame tolerance of 0.01mm and good finish. High-end imported cutting tools (Swiss Sandvik and Japanese BIG) are used to improve the straightness and precision of holes and frames and the accuracy and finish of the entire processing of the mould base.

Features:

• Product Name: Standard Mould Base
• Logo: DXM
• Packaging: Fumigation-free Wooden Box
• Product selection:
  • In Addition To Standard Mould Base, Can Other Processing Projects Be Done For Mold Frame Products?
  • The Following Additional Processing Projects Can Be Done For Mould Base Products: AB Plate And Push Plate Change Steel Type, Rough (fine) Frame Processing, Precision Frame Chamfering, Round Frame, Back Needle Through Push Plate, Limit Pin, Guide Post Inversion, Standard Needle. Plate Edge (EGP), Standard Code Mould Pit, Fine Work Surface Code Mould Pit, Top Stick Hole, Side Lock (SIDELOCK), Top Lock (TOPLOCK), Oblique Guide Position Assistant (TAPERBLOCK), Suction Nozzle. Hole, Code Die Iron (locking Module).
  • If The Above Processing Projects Cannot Meet Your Needs, Please Contact Us Directly.
• Application: Daily Necessities, Toys, Cosmetics, Electrical Appliances, Medical Equipment, Etc.
• Standards:
  • Honing True Round Guide Sleeve Can Effectively Increase The Number Of Opening And Closing Moulds By 20%, Prevent Guide Post From Being Pulled And Improve The Service Life Of The Mould.
  • Customized 50c Material, Hardness HB=160-180. Higher Hardness, Lower Deformation Rate, Better Finish And Better Rust Resistance Than Ordinary Steel(hardness 140-170).
  • The Whole Set Of Screw Teeth Use CNC Extrusion Teeth Process, Smooth Screw Teeth, Easy To Disassemble And Assemble.
  • The Screw Head Is Processed By CNC Sinking, The Bottom Of The Hole Is Flat, And The Locking Performance Is Better.
  • The Square Iron Screw Hole Is Processed By CNC, With Good Verticality.
  • The Plate Thickness Tolerance Is +0-0.1mm. Prepare Pre-customizable Accessories To Shorten The Mould Production Time.
  • Imported Equipment: MAZAK, OKUMA, MORI SEIKI, MAKINO, With Accurate Repeated Positioning And Precision Hole And Frame Tolerance Of 0.01mm And Good Finish.
  • Using High-end Imported Cutting Tools (Swiss Sandvik And Japanese BIG) To Improve The Straightness And Precision Of Holes And Frames And The Accuracy And Finish Of The Entire Processing Of The Mould Base.

Technical Parameters:

Applications:

DXM's Standard Mould Base is a high-quality tooling system that is widely used in daily necessities, toys, cosmetics, electrical appliances, medical equipment and other industries. It is especially ideal for producing parts with precise dimensions and good surface finish. The product features a brand name of DXM, a model number of Standard Fine water mouth system mould base, a place of origin of Guangdong, China, a certification of ISO9001:2015, a minimum order quantity of 1, a price that is quoted according to the drawings and processing requirements you provided, packaging details that all exported products are packaged in fumigation-free wooden boxes and transported to designated ports by sea transportation using containers, a delivery time of standard mould base ranging from 15*15cm-35*45cm with normal production time of 1 day and a standard modified mould base ranging from 15*20cm-40*50cm with normal production time of 1-2 days, payment terms that provide a very diverse range of payment methods and provide VAT invoices for all orders, a supply ability of 200 sets/year, a color of steel, and standards that include honing true round guide sleeve that can effectively increase the number of opening and closing moulds by 20%, prevent guide post from being pulled and improve the service life of the mould, customized 50C material with hardness HB=160-180, whole set of screw teeth use CNC extrusion teeth process, smooth screw teeth, easy to disassemble and assemble, screw head is processed by CNC sinking, the bottom of the hole is flat, and the locking performance is better, square iron screw hole is processed by CNC, with good verticality, plate thickness tolerance is +0-0.1mm, prepare pre-customizable accessories to shorten the mould production time, imported equipment MAZAK, OKUMA, MORI SEIKI, MAKINO, with accurate repeated positioning and precision hole and frame tolerance of 0.01mm and good finish, and using high-end imported cutting tools (Swiss Sandvik and Japanese BIG) to improve the straightness and precision of holes and frames and the accuracy and finish of the entire processing of the mould base.

Customization:

Support and Services:

Our Standard Mold Base products are designed and manufactured to meet the highest quality standards. We strive to provide our customers with the best service and support.

Our team of experienced engineers and technicians are available to provide technical support and answers to any questions you may have. We offer phone, email, and online chat support to ensure that you get the help you need.

In addition to our technical support, we also offer a wide range of services to ensure that your Standard Mold Base products are working properly and efficiently. We offer maintenance and repair services, as well as installation and set-up services. We also provide training services to help you get the most out of your products.

Packing and Shipping:

Packaging and Shipping for Standard Mould Base:

Standard mould bases are packaged and shipped in cardboard boxes for protection and easy transportation. The boxes are clearly labeled with the product name, dimensions, weight, and any other relevant information, such as the quantity in the box. All boxes are secured with tape and any fragile components are further protected with bubble wrap.

The boxes are then placed in larger shipping boxes, which are also clearly labeled with the product name, weight, and destination. All shipping boxes are secured with strong tape to ensure that the packages are not damaged during transit.

FAQ:

Q: What is the Brand Name of Standard Mould Base?

A: The Brand Name of Standard Mould Base is DXM.

Q: What is the Model Number of Standard Mould Base?

A: The Model Number of Standard Mould Base is Standard Fine water mouth system mould base.

Q: What is the Place of Origin of Standard Mould Base?

A: The Place of Origin of Standard Mould Base is Guangdong, China.

Q: Does Standard Mould Base have Certification?

A: Yes, Standard Mould Base has Certification of ISO9001:2015.

Q: What is the Minimum Order Quantity for Standard Mould Base?

A: The Minimum Order Quantity for Standard Mould Base is 1.
